SMART Compliance

Summary of the Module

The Tied tower scaffolding module is intended to perform certain design calculations for tied tower façade access scaffolds of tube and fitting construction located in the UK or Ireland. The calculation reports show the results in a transparent manner complemented by additional drawings that can be used with or without accompanying TG20:21 compliance sheets. The following sections provide details of the user inputs required, and also explain the outputs provided by the software.

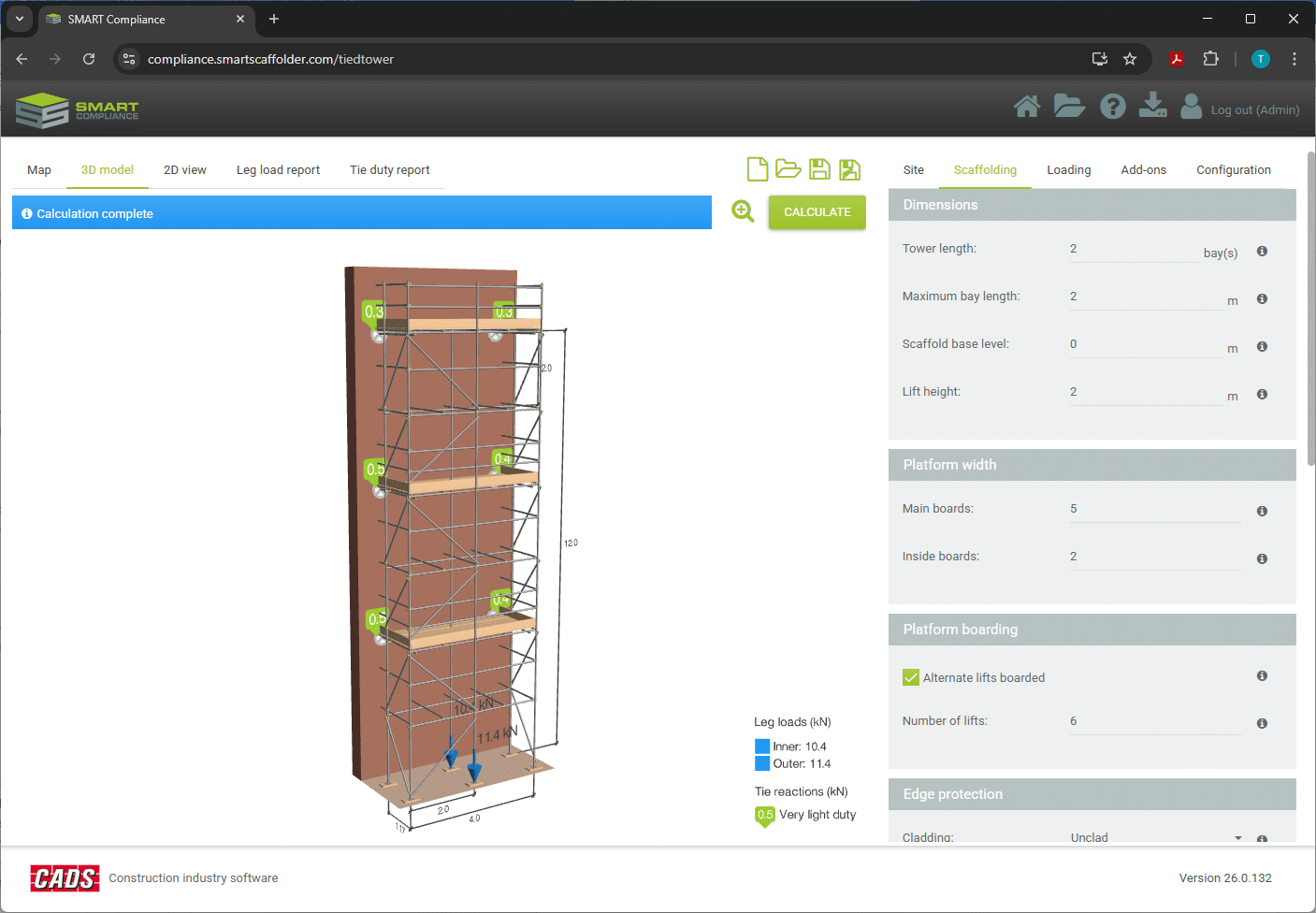

Display Panel Options
Input Panel Options

The input panel options are similar to that of Tied independent scaffolding module, except for the changes below:


Scaffolding

Input Description
Tower length

The maximum length of the scaffold elevation in bays. This is limited to one or two bays in accordance with section 15.1 of the TG20:21 Operational Guide.

Lift boarding

The lift boarding options are as for the Tied independent scaffolding module.

Number of lifts

The total number of scaffold lifts, whether boarded or unboarded.


Add-ons

The entry of add-ons is as for the Tied independent scaffolding module, except that the inputs related to bridges are not available.

Analysis Approach
